Description

Product Code

USOFT-4830.FPR

UTEST Software for Automatic Compression/Flexure Testing Machines

with UTC-4830FPR Hydrolic Power Pack



The Automatic Compression Testing Machine can be controlled (Start, Stop commands) by a computer with the software (given free of charge by UTEST).

This software provides data acquisition and management for compression, flexure and splitting tensile tests of construction materials such as concrete, cement, bricks.

The advanced functions for data base management provide an easy navigation of all saved data.

The test results certificate includes all descriptive information.

Therefore, test parameters can be set and details about the test carried out such as client details, test type, specimen type, user info and other information required can be entered and printed out as well as test report and graph.



Following tests can be done with the USOFT-4930.FPR Software;

  • Compressive Strength of Concrete Cylinders / Cubes
  • Flexural Strength of Concrete Beams
  • Flexural Strength of Concrete Kerbs
  • Tensile Splitting Strength of Concrete Cylinders / Cubes
  • Tensile Splitting Strength of Concrete Paving Blocks
  • Compressive Strength of Masonry Units/Blocks
  • Flexural Strength of Concrete  Flagstones/Slabs
  • Compressive Strength of Hydraulic-Cement Mortars
  • Flexural Strength of Hydraulic-Cement Mortars

•Foreign Language Support and Customizable User Interface. All contents of experimental data and   additional information can be organized by user. Software can be performed in x different languages.

 •Capability to Save 24 test results of different specimens in one test folder. Test results, graphics and   properties of 24 different specimens can be saved in one folder. Old test folders can be reviewed and be edited easily. Advanced Graphic User Interface Software.

 •Graphical data on the screen is refreshed simultaneously during test procedure. Load values can be  monitored in high resolution graphics at every 100 milliseconds. User can highlight all 24 different specimen curves or preferred ones in different colors on the graphics. Zooming in–out and dragging can be done easily by mouse. Peak values of curves can be marked on the graphics and user can get load value of any point on the graph via high resolution.

 •Able to save frequently used texts in memory and recall them when necessary. Frequently used    information like name and location of the laboratory, type and dimensions of mostly used specimens are held in memory and can be written automatically by right clicking on information  boxes and selecting frequently used text in menu.

 • Capable to Access and use previously done test data. User can access any data of previously completed tests and use in his/ her new report since most of the tests have same structure and properties.

 • Able to edit test parameters of the testing equipment through software. All test parameters supported by testing equipment can be changed remotely via software. All test parameters specified by user are downloaded to the device before initialing the test procedure. By this way predefined device parameters will not cause errors in test results.

 • Graphical outputs and reports can be saved as a MS Excel worksheet. Test result parameters and   graphics are transferred to MS Excel worksheet properly to give user a chance to edit any data and graph easily.

• Maximum Flexibility to edit report and graph templates. User can design his/her custom report template and graphic scheme in MS Excel. In software part, user will define which data will be screened in which cell on the worksheet. Therefore, he/she will be able to monitor test results in his/her specific design.

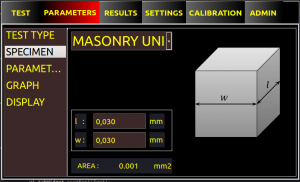

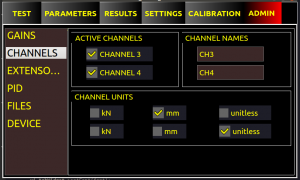

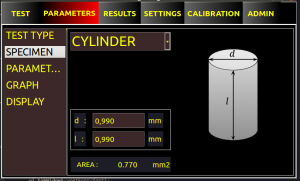

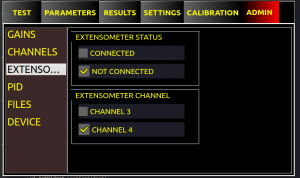

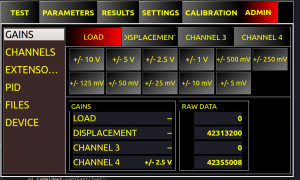

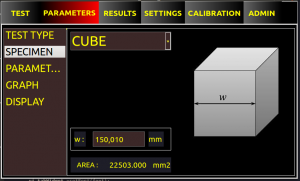

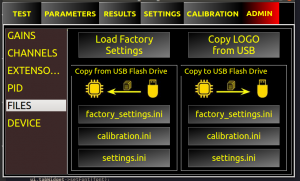

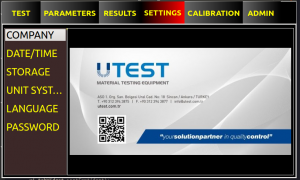

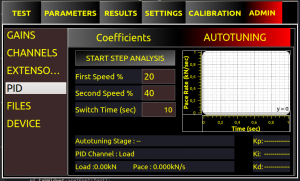

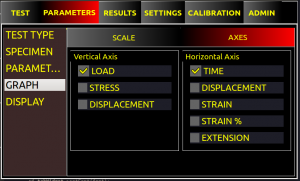

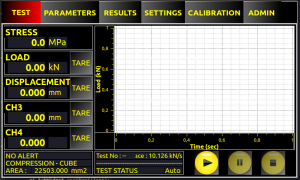

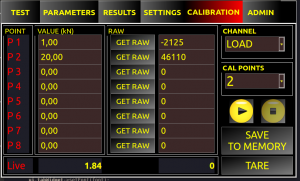

Screenshot from 2019 07 16 10 20 21Screenshot from 2019 07 16 10 20 55Screenshot from 2019 07 16 10 20 43Screenshot from 2019 07 16 10 21 13Screenshot from 2019 07 16 10 24 13Screenshot from 2019 07 16 10 21 50Screenshot from 2019 07 16 10 23 10Screenshot from 2019 07 16 10 23 25Screenshot from 2019 07 16 10 23 34Screenshot from 2019 07 16 10 23 41Screenshot from 2019 07 16 10 23 58Screenshot from 2019 07 16 10 22 15
